ATEX Explosion Proof CCTV Camera(SHJ-AEP100-A)

ATEX Explosion Proof CCTV CameraModel: SHJ-AEP100-AProduct Introduction:SHJ-AEP100-A is ATEX and IECEx certified explosion proof CCTV camera. With stainless steel enclosure, it can load zoom camera, b

Availability:



Inquire sales@shj-electronic.com

Brand: Speed

Product Description

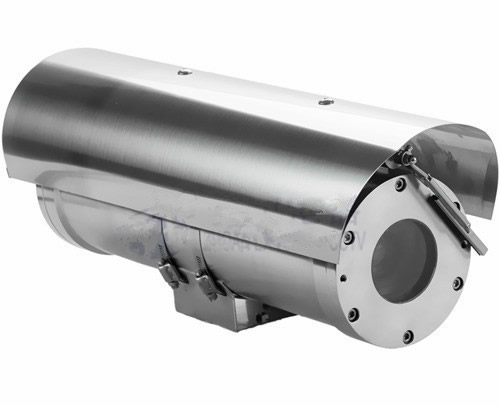

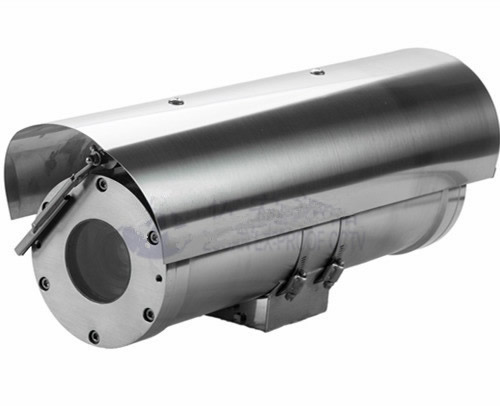

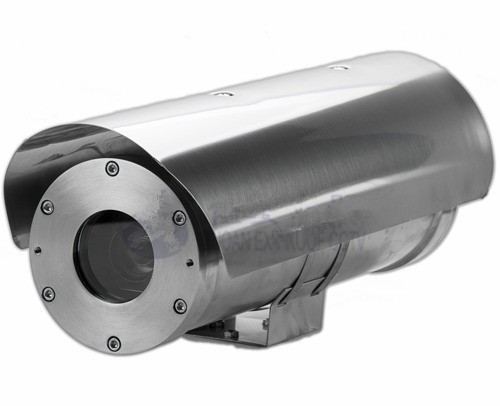

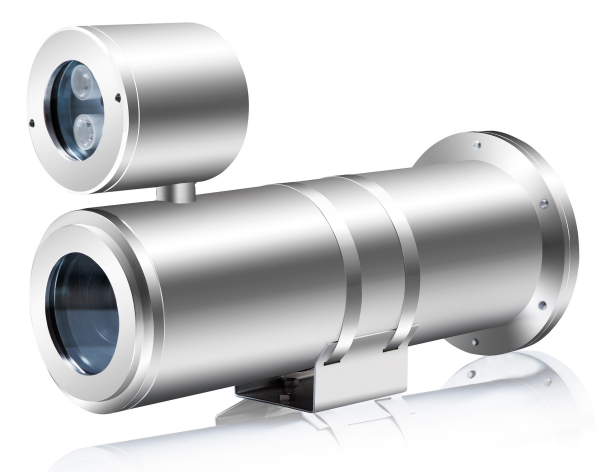

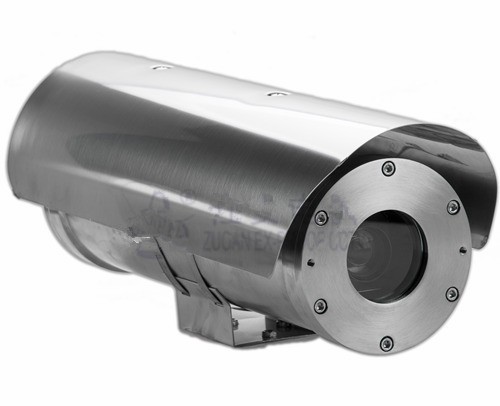

ATEX Explosion Proof CCTV Camera(SHJ-AEP100-A)

ATEX Explosion Proof CCTV Camera

Model: SHJ-AEP100-A

Product Introduction:

SHJ-AEP100-A is ATEX and IECEx certified explosion proof CCTV camera. With stainless steel enclosure, it can load zoom camera, box camera, bullet camera.

Certificate

ATEX Certificate Mark

Ⅱ2G Ex db ⅡC T6 Gb,

Ⅱ2D Ex tb ⅢC T80 ºC Db

Certificate

ATEX, IECEx

Standards

IEC/EN60079

Mechanical

Housing	Stainless steel 304 or 316L
Surface	Optional electro-polish or painting
Ingress protection	IP68 (1.2m/ 45min)
Cable thread hole	M25X1.5, or M27×1.25、

Electrical

Voltage	AC100V～AC240V or AC24V
Power	15W/25W (with thermostat)
Surge Protect	Optional, TVS6000V surge protect
Optical Fiber output	Optional, multimode or single mode
Optical Video signal	1-way video output
Optional network signal	RJ45
Optical Audio	1-way input, 1-way output
Optical Alarm	2-way alarm input, 1-way alarm output
Address code	0/1
Trail cable	2m integrated cable
