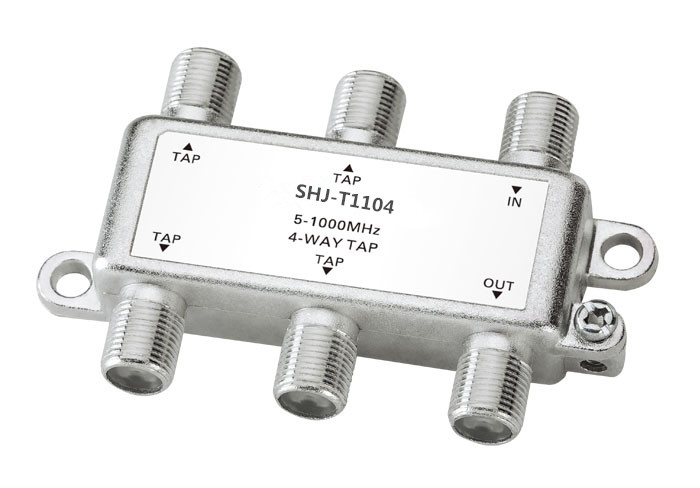

5-1000MHZ 4-Way Indoor CATV Tap(SHJ-T1104)

5-1000MHZ 4-Way Indoor CATV TapModel: SHJ-T1104Features:lZinc die-cast housing, nickel-platedlScreening factor: 5-1000MHz100dBlEasy installation, capable of passing cable thru housing bottomlLow inser

Availability:



Inquire sales@shj-electronic.com

Brand: Speed

Product Description

5-1000MHZ 4-Way Indoor CATV Tap(SHJ-T1104)

5-1000MHZ 4-Way Indoor CATV Tap

Model: SHJ-T1104

Features:

lZinc die-cast housing, nickel-plated

lScreening factor: 5-1000MHz≥100dB

lEasy installation, capable of passing cable thru housing bottom

lLow insertion loss,high return loss and isolation

lMicro-strip circuit design and perfect performance index

lAll ports F-(f)connector,75 Ohm

Parameter description:

Item	Frequency Range	10	12	14	16	18	20	22	24	27	30
Insertion Loss (dB)	5-40(MHz)	3.5	3.0	2.5	2.0	2.0	1.2	1.2	1.0	1.0	1.0
	40-470(MHz)	3.5	3.5	2.5	2.0	2.0	1.2	1.2	1.0	1.0	1.0
	470-860(MHz)	3.8	3.5	2.8	2.2	2.2	1.5	1.5	1.2	1.2	1.2
	860-1000(MHz)	4.5	4.0	3.0	2.5	2.2	1.5	1.5	1.2	1.2	1.2
Tap Loss Tolerance (dB)	5-40(MHz)	±1.0
	40-470(MHz)	±1.0
	470-860(MHz)	±1.5
	860-1000(MHz)	±2.0
Mutual Isolation (dB)	5-40(MHz)	28	25	26	26	26	27	27	27	27	27
	40-470(MHz)	28	25	26	26	26	27	27	27	27	27
	470-860(MHz)	25	25	25	25	25	25	25	25	25	25
	860-1000(MHz)	25	25	25	25	25	25	25	25	25	25
Reverse Isolation (dB)	5-40(MHz)	28	27	27	32	35	32	35	40	38	40
	40-470(MHz)	30	27	27	32	35	32	32	40	38	40
	470-860(MHz)	25	25	28	30	32	30	32	35	35	38
	860-1000(MHz)	25	23	25	30	32	30	30	35	32	35
Return Loss (dB)	5-40(MHz)	20	20	20	20	20	20	20	20	20	20
	40-470(MHz)	20	20	20	20	20	20	20	20	20	20
	470-860(MHz)	18	18	18	18	18	18	18	18	18	18
	860-1000(MHz)	17	17	17	17	17	17	17	17	17	17
