6 Way 5-2400MHZ Satellite TV Splitter(SHJ-SS06A)

6 Way 5-2400MHZ Satellite SplitterModel: SHJ-SS06AFeatures:lZinc die-cast housing, tin-platedlLight weight and compact sizelEasy installation with two edge hole siteslScreening factor: 5-2400MHz100dBl
Availability:
  • Speed

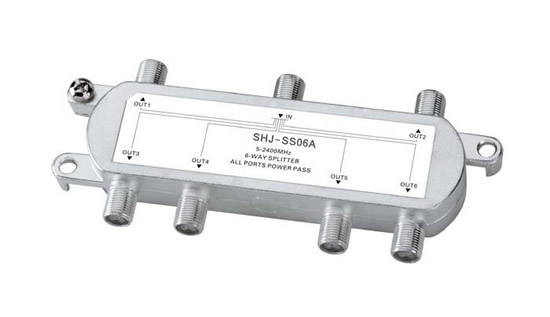

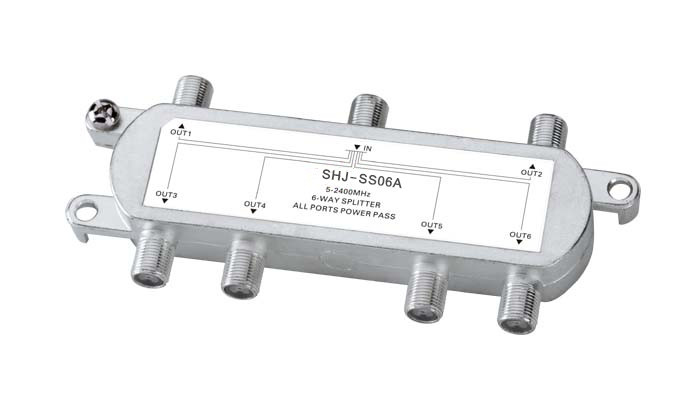

6 Way 5-2400MHZ Satellite TV Splitter(SHJ-SS06A)


6 Way 5-2400MHZ Satellite Splitter

Model: SHJ-SS06A



Features:


lZinc die-cast housing, tin-plated

lLight weight and compact size

lEasy installation with two edge hole sites

lScreening factor: 5-2400MHz100dB

lLow insertion loss, high isolation, perfect performance index

lDesigned for SATV/CATV

lPower passing-24V 0.8A(MAX.)

lAll ports F-(f)connector,75Ohm


Parameter description:

Frequency Range (MHz)

Insertion Loss(dB)

Mutual Isolation(dB)

Return Loss(dB)

5-40

≤10.5

≥20

≥10

40-1000

≤11.0

≥20

≥12

1000-1750

≤12.5

≥20

≥12

1750-2400

≤15.5

≥20

≥10
