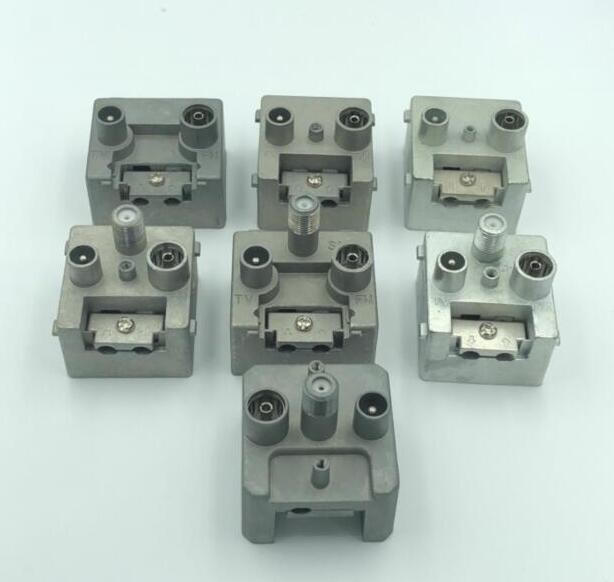

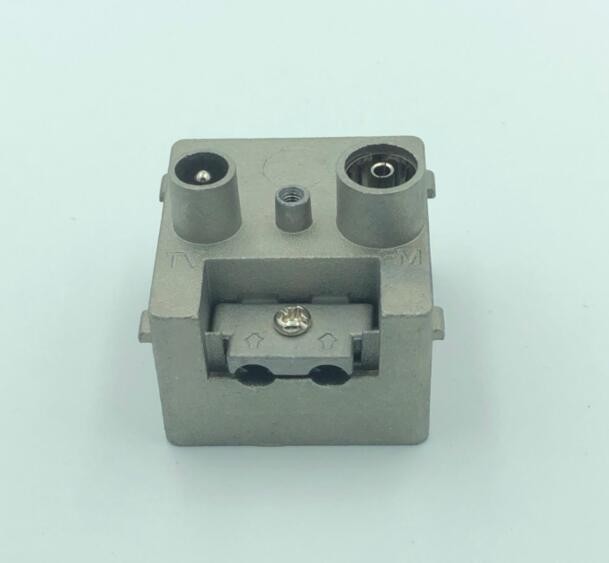

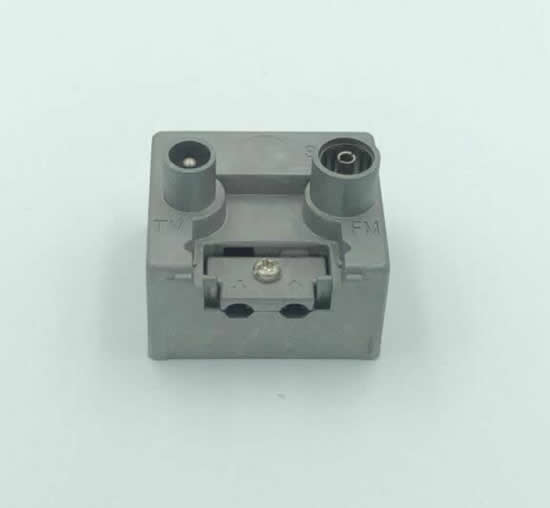

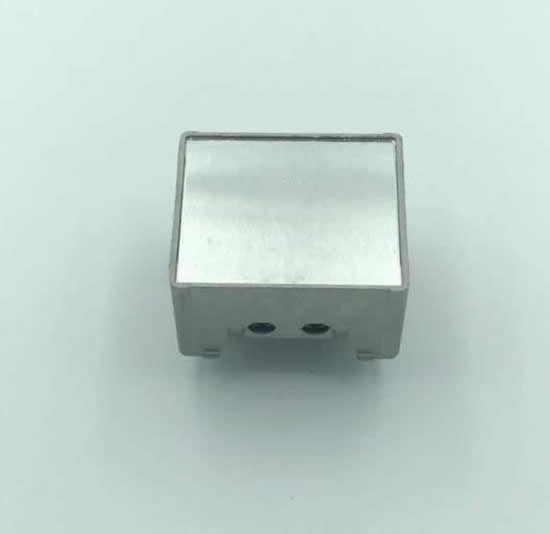

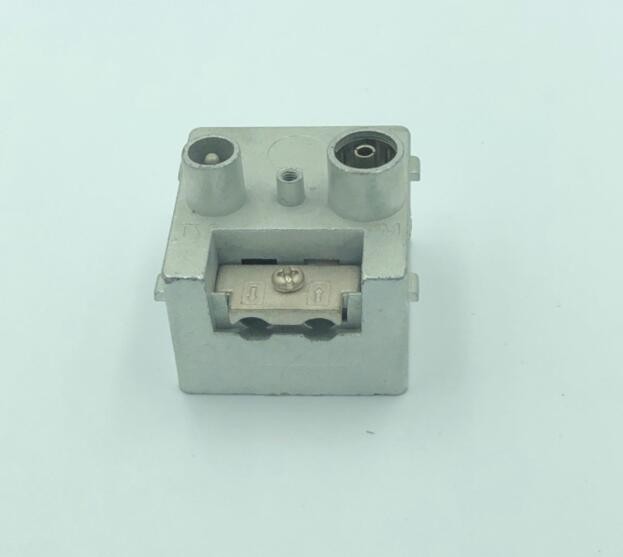

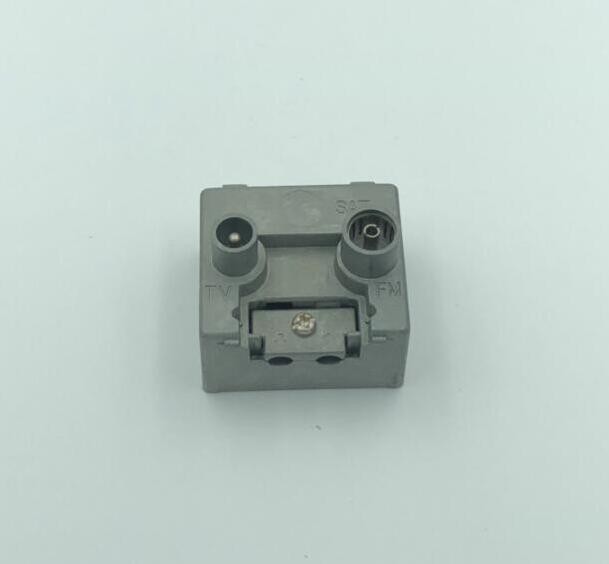

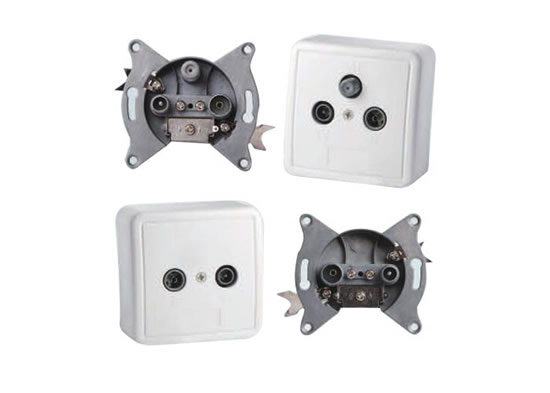

2 Hole 5-1000MHZ TV+FM Wall Socket Outlet(SHJ-TWS015)

5-1000MHZ TV+FM Wall Socket OutletModel: SHJ-TWS015Product Features:1. Zinc die cast housing, nickel-plated2. All ports connector, 75Ω3. Original and 100% new4. All tested one by one before shipping,

Availability:



Inquire sales@shj-electronic.com

Brand: Speed

Product Description

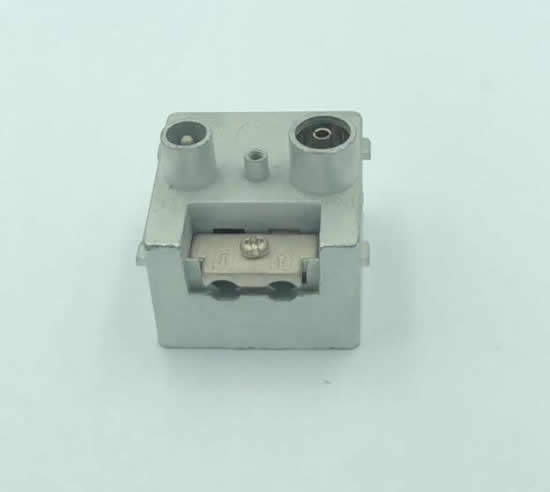

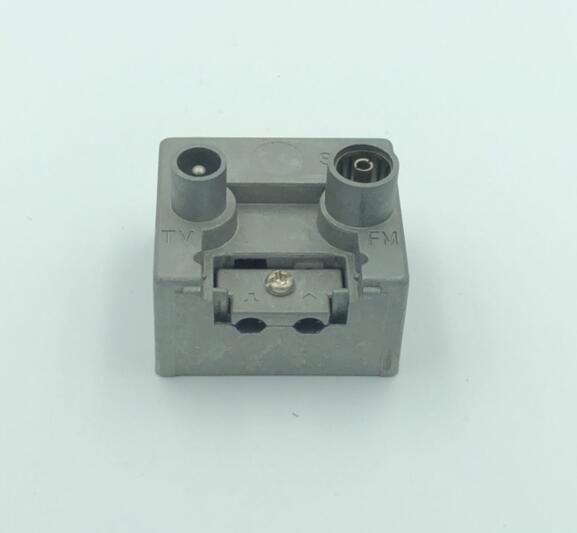

2 Hole 5-1000MHZ TV+FM Wall Socket Outlet(SHJ-TWS015)

5-1000MHZ TV+FM Wall Socket Outlet

Model: SHJ-TWS015


Product Features:

1. Zinc die cast housing, nickel-plated

2. All ports connector, 75Ω

3. Original and 100% new

4. All tested one by one before shipping, make sure all of our product for audio deviceis without dead spot and grey spot.

5. ODM/OEM accept

6. Competitive price and prompt delivery

Parameter description:

TV+FM

Parameter	Frequency Range	ITEM:T	ITEM:8	ITEM:10	ITEM:12	ITEM:14	ITEM:16
IN-OUT	5-860MHz		3.0dB MAX	2.7dB MAX	2.5dB MAX	2.0dB MAX	1.8dB MAX
IN-TV	5-68MHz	1.5dB MAX	8.5dB MAX	11.0dB MAX	12.5dB MAX	15.0dB MAX	17.5dB MAX
IN-TV	125-860MHz	2.5dB MAX	9.0dB MAX	11.5dB MAX	13.5dB MAX	15.5dB MAX	17.5dB MAX
IN-FM	87.5-108MHz	2.5dB MAX	9.0dB MAX	12.0dB MAX	13.5dB MAX	15.5dB MAX	17.5dB MAX
ISOLATIONS	5-860MHz	20dB MIN	20dB MIN	20dB MIN	20dB MIN	20dB MIN	20dB MIN
ALL PORTS
Return Loss	5-860MHz	8-12dB MIN	8-12dB MIN	8-12dB MIN	8-12dB MIN	8-12dB MIN	8-12dB MIN
ALL PORTS
