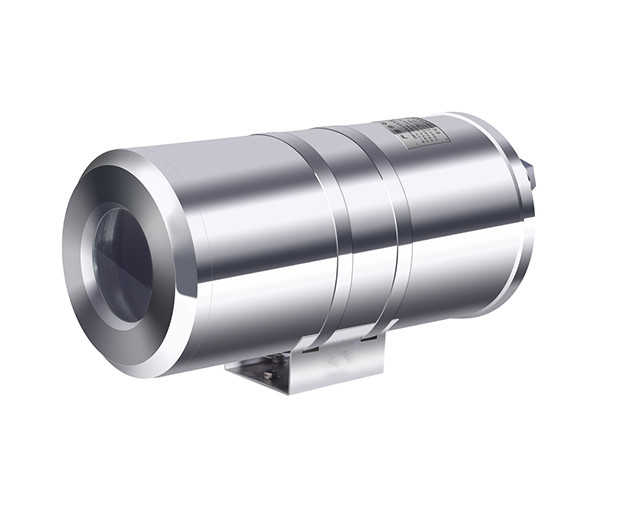

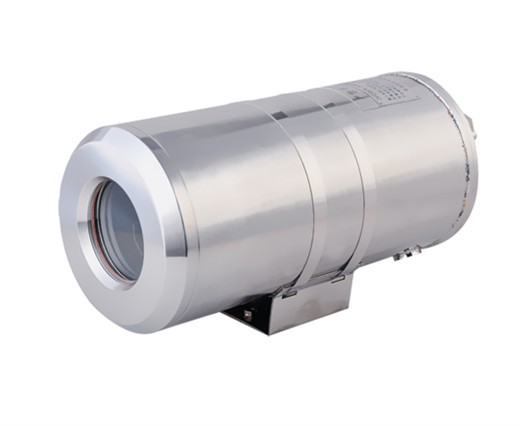

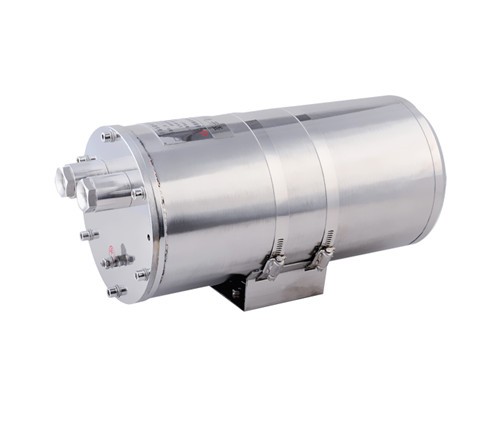

Air water cooling explosion proof camera housing
Model: SHJ-F106
Product Introduction:
SHJ-F106 is air water cooling type explosion proof camera housing, which is widely apply for high temperature working plant, like furnace, power plant, glass and steel processing line.Air cooling explosion proof camera housing can resist -25 to +150℃ ...
Certificate
Certificate Mark | ExdⅡC T5 GB/DIP A20 TA, T5 |
Certificate No | CNEx13.4248 |
Standards | Q/320412ZAF012-2013 |
Mechanical
Housing | Stainless steel 304 or 316L |
IP | IP68 |
Cable thread hole | 2pcs G3/4 or NPT3/4 |
Sun-shield | No |
Wiper | No |
Electrical
Voltage | AC85V～AC265V or DC24Vor AC24V |
Power | 15W |
Ambient
Ambient temperature | Air cooling -25 to +150℃ , water cooling 0 to +250℃ |
Air pressure | 80Kpa to 106Kpa |
Relative Humidity | ≦95% (no condensation) |
General
Size | 374*163*185mm |
Housing inner size | 260*80*80mm |
Weight | 9.1kg |
Mounted | wall, pole |
Wall bracket | SHJ-Z100B |

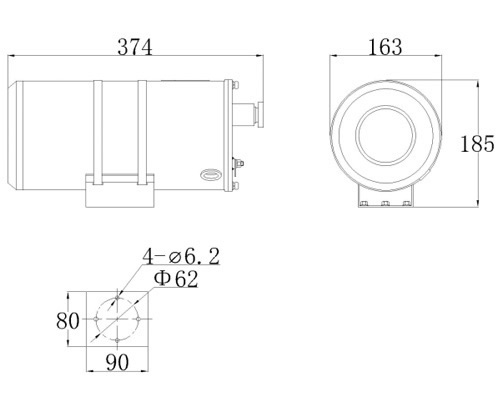

Drawing: (mm)
