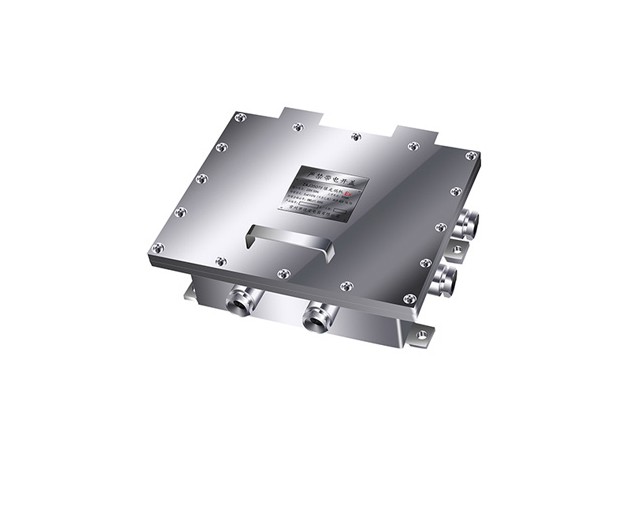

Explosion Proof Box
Model: SHJ-B350
Product Introduction:
1. Fit for gas zone 1, zone 2;
2. Fit for dust zone 21, 22;
3. IP66;
Certificate
Certificate Mark | ExdⅡB(+H2)T6 GB/DIP A20 TA, T6 |
Certificate No | CNEx13.4245 |
Standards | Q/320412ZAF065-2013 |
Mechanical
Housing | Stainless steel 304 or 316L |
IP | IP66 |

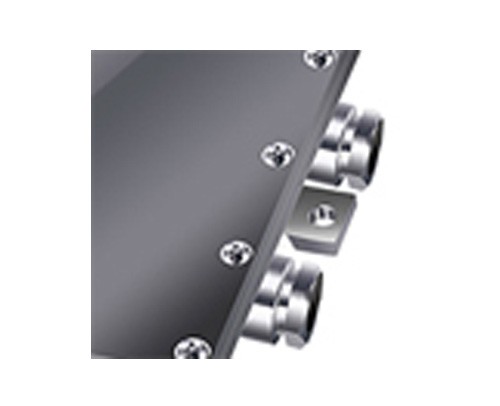

Cable thread hole | 6pcs G3/4 or NPT3/4 |
Electrical
Voltage | AC85V～AC265V |
Current | ≦500mA |
Power | ≦50W |
Surge Protect | Optional, TVS6000V surge protect |
Optical Fiber output | Optional, multimode or single mode |
Fiber distance | 25km |
Ambient
Ambient temperature | -25 to +60℃ |
Air pressure | 80Kpa to 106Kpa |
Relative Humidity | ≦95% (no condensation) |
General
Overall size | 382*308*144mm |
Inner Size | 240*210*101mm |
Weight | 17.1kg |

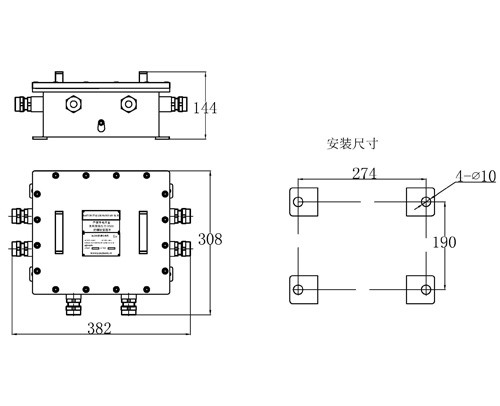

Drawing: (mm)
