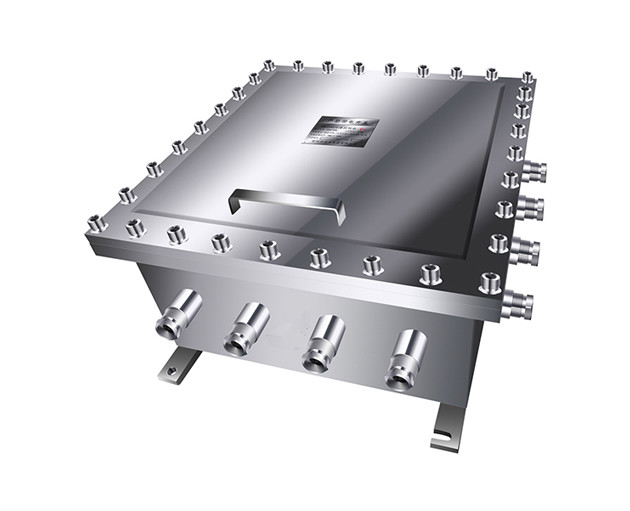

Explosion Proof Box
Model: SHJ-B340
Product Introduction:
SHJ-B340 is a large explosion proof box, which can load DVR, NVR, network switch, optical fiber transceiver.
Certificate
Certificate Mark | Exd [ib] ⅡBT6 Gb/Ex tD A21 IP66 T80℃ |
Certificate No | CNEx16.2227 |
Standards | Q/320412ZAF027-2016 |
Mechanical
Housing | Stainless steel 304 |
IP | IP66 |
Cable thread hole | 12pcs G3/4 or NPT3/4 |
Electrical
Voltage | AC85V～AC265V |
Current | ≦500mA |
Power | ≦50W |
Surge Protect | Optional, TVS6000V surge protect |
Optical Fiber output | Optional, multimode or single mode |
Fiber distance | 25km |
Ambient
Ambient temperature | -25 to +60℃ |
Air pressure | 80Kpa to 106Kpa |
Relative Humidity | ≦95% (no condensation) |
General
Overall size | 543*526*252mm |
Inner Size | 424*404*192mm |
Weight | 57kg |

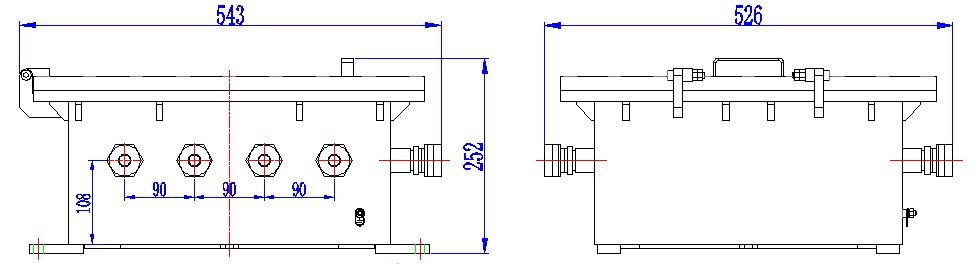

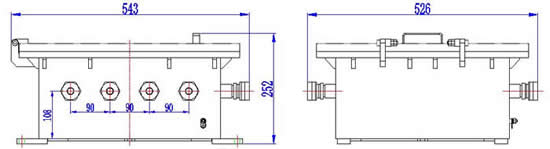

Drawing: (mm)
